User manual

Get to Know AIO-6

Your quick guide to product details, installation, and features — no need to wait for delivery.

Get Started

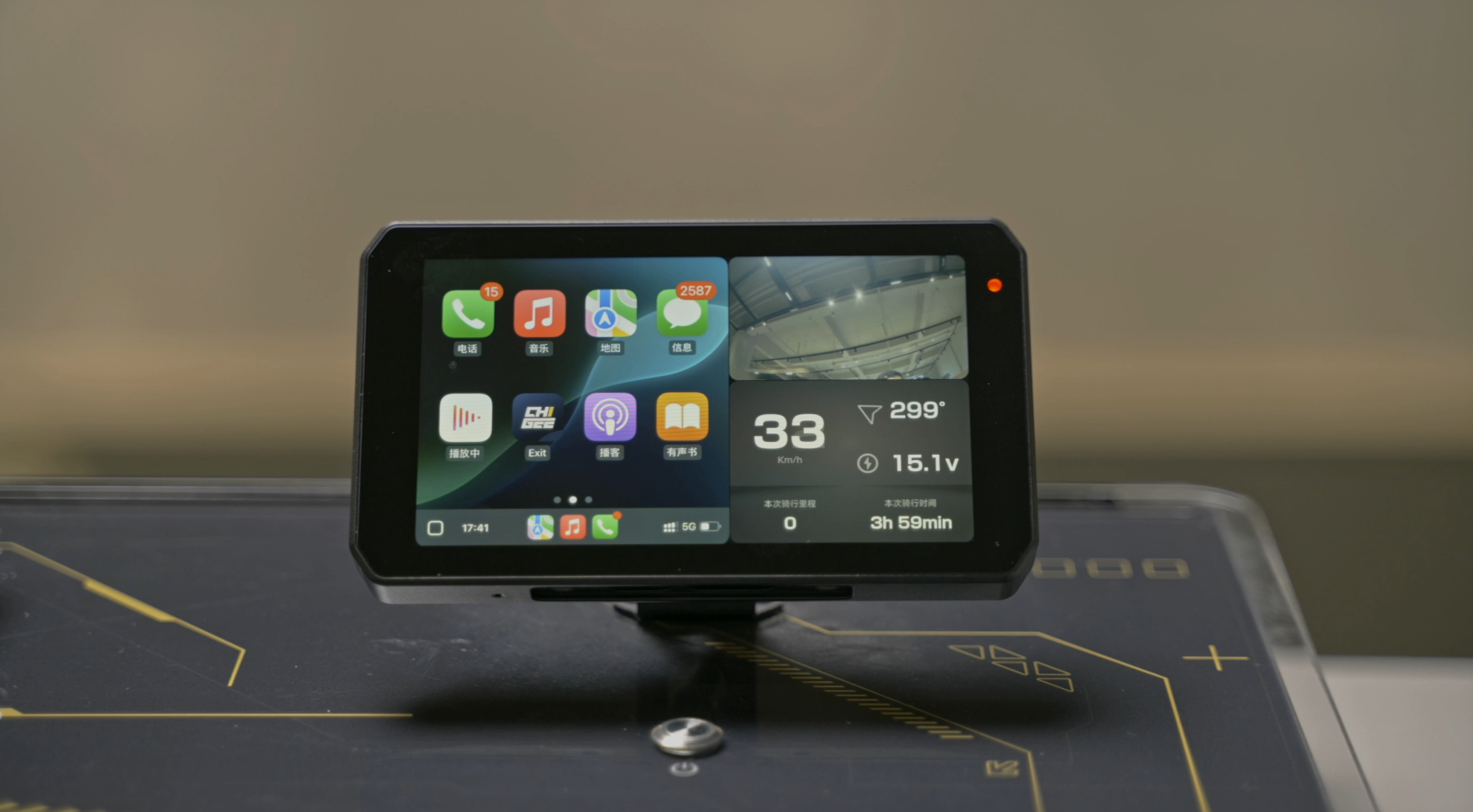

AIO-6 Max

6inch Smart Riding System

View Now

AIO-6 LTE

4G Smart Riding System

View Now

BMW Quick-Release Base

 for AIO-6 Series

View Now

CG Quick-Release Module

 for AIO-6 Series

View Now

60fps Cameras

 for AIO-6 Series

View Now

Poster

Install the CG Quick-Release Module with camera

Poster

Install the BMW Quick-Release Module with camera

Poster

Link your Insta360 & Gopro to your CHIGEE Display

Poster

Enable Fusion Mode on the AIO-6 Series

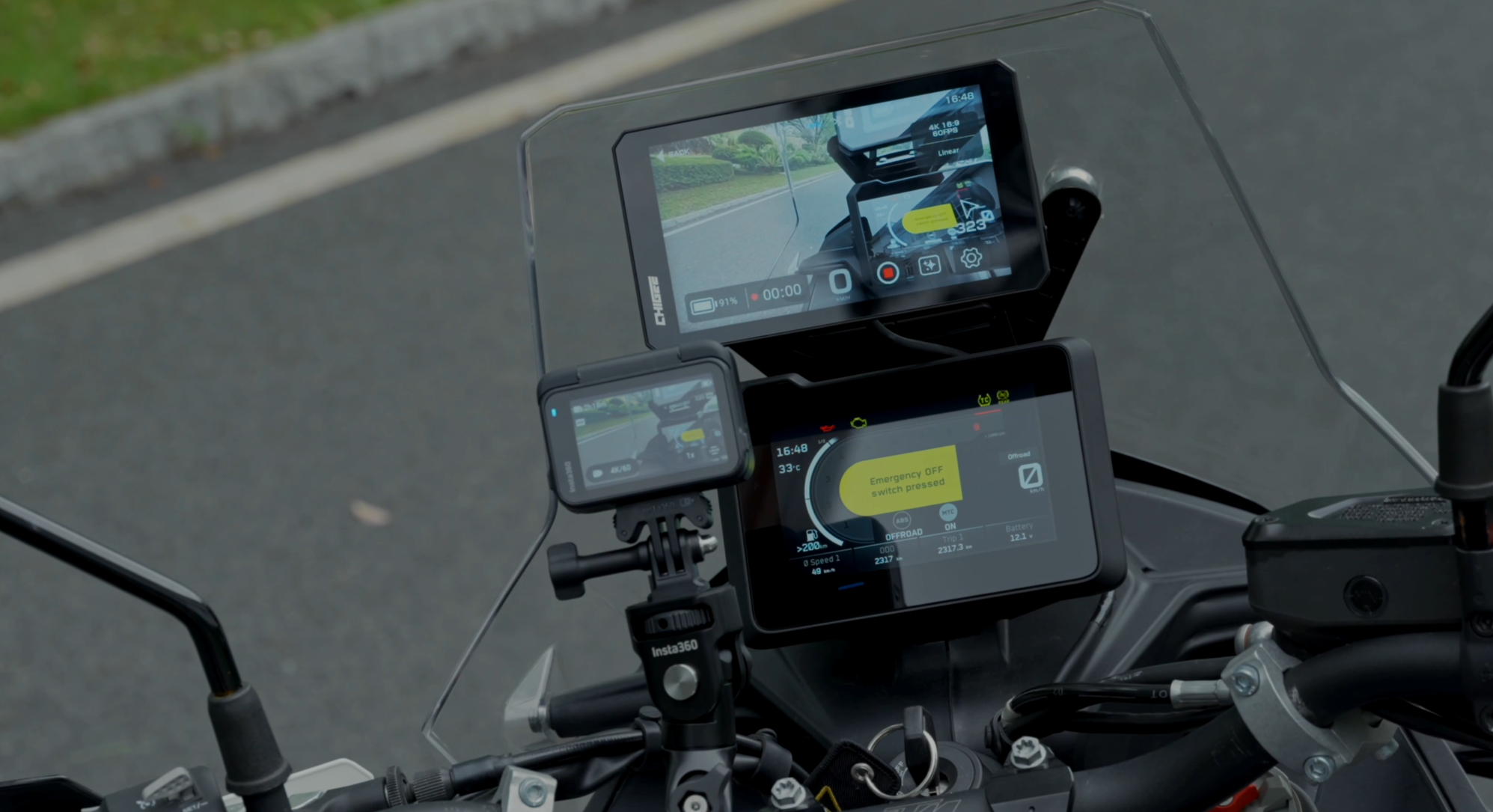

Bracket installation

Included Handlebar Mount

Suitable for 22-32mm pipe diameter.

Fork Stem Mount

12-29mm Fork Stem mounting holes for sport bike style.

Side Mirror Extension Mount

For M8/M10 screw of the motorcycle rearview mirror.


Know more about Settings

System Settings

Display & Volume
Adjust screen brightness and speaker volume. You can also enable auto-brightness.

Storage
Check available space on the internal storage and TF card, and format if needed. Be sure to back up important video files before formatting.

Function
Access optional features and settings, including tire pressure sensors, Bluetooth headsets, remote control, GPS, OBD, blind spot monitoring, and system updates.

Download
Enable the device's Wi-Fi hotspot. After connecting your phone to the hotspot, you can download video files.

Tutorial
View the user manual for this device.

Update
Check your current system version and available updates.

Reset
Restore factory settings. All customized settings will return to default.

About
View device information including SN code, firmware version, and Bluetooth name.

More
Customize units for mileage and temperature, set rest reminders, switch cameras, and more.

Function Settings

Language
Choose from multiple language options to use the interface in your preferred language.

Time
Set the date and time.

Tire Pressure Monitor Sensor
Optional TPMS sensors provide real-time tire pressure monitoring. When pressure reaches a warning threshold, you’ll receive a popup and alert sound. Pressure data is overlaid and synced to the video file in real time.

Headset
Connect Bluetooth earphones for use in Android Auto mode.

Remote Controller
The optional CGRC Pro remote lets you lock videos, switch screens, take photos, answer calls, and more.

GPS
Check GPS signal strength.

OBD
With the optional wireless Bluetooth OBD module, you can view real-time engine data. OBD data is overlaid and synced with the recording.

Attitude Calibration
Calibrate the bike’s tilt angle to ensure accurate SOS data.

BSD
The Blind Spot Detection system provides visual and audible alerts when a vehicle is detected in the rear blind spot.

Speed Alert
System update available for the best experience (SD card required).

Dashcam Settings

Video Resolution
Choose between 1080p and 720p.

FPS
Select recording frame rate: 30fps or 60fps.

Fusion output
When enabled, the front and rear camera footage will be combined into a single video file, displayed in a picture-in-picture format.

Video Length
Set the duration of each recorded video segment: 1, 2, or 3 minutes.

Data Overlay
Choose which data to overlay on the video: time, speed, and GPS coordinates. For more data options, use the CHIGEE GO 2 app.

Mirror flip
Enable mirror correction to flip the image preview, or use the rear camera as a rearview mirror.

Collision Lock
When enabled, the video recorded during a collision will be locked and protected from being overwritten. Sensitivity options: High, Medium, Low.

Parking Monitor
While parked, the device will automatically record a 30-second video if vibration is detected. Sensitivity options: High, Medium, Low.

Sound Recording
Adjust microphone volume settings.

Recording Indicator Light
Turn the recording indicator light on or off.

Buying Guide

For more information, please visit our Knowledge Base. If you still have questions, feel free to contact us directly.
