SKU: MFP0114

CG OBDワイヤレスモジュール:データ読み取り

セール価格US$109.00 4.4

CG OBDモジュールであなたのバイクの可能性を最大限に引き出しましょう。バイクのOBDポートに簡単に接続するだけで、エンジンのリアルタイムデータをモニタリングし、主要なメトリクスを動画に重ねて表示、さらに走行パフォーマンスを手軽かつ正確に分析できます。


コネクタ: OBD II 6ピン
送料無料・迅速発送
12-ヶ月保証

オートバイ互換性

CG OBDモジュールは、各オートバイに合わせて設計されています。 OBDプロトコル とモダンな地図のシャープなラインは冒険心をかきたて、ビンテージ風の地図は コネクタタイプ, 特定モデルではありません。

のために さまざまなOBDインターフェースとプロトコルの広範な範囲 異なるオートバイのブランドやモデル年によって、詳細な互換性リストを提供するのは非常に複雑です。これらの違いはしばしば一貫性がなく、普遍的な互換性を保証することが難しいです。

1.直接互換性

あなたのオートバイが使用している場合は ISO 15765-4 CAN(コントローラーエリアネットワーク)OBDプロトコル と Euro 5(6ピン)OBDコネクター、やさしさ CG OBDモジュール 動作します アダプターなしで直接接続可能バンダイ公式LEDユニット
モジュールを接続するだけで、すぐに使用可能です。

2.対応ブランドとモデル

以下に記載されていないオートバイの場合、互換性を保証できません。
対応していないモデルを購入することは自己責任となり、互換性がない可能性があることを理解した上で行ってください。

対応モデル (購入前に製造年を確認してください)

  • 2019年以降に生産されたモデル:スズキ、ハーレーダビッドソン、トライアンフ、CF Moto、KTM、ドゥカティ、インディアン、ハスクバーナ、アプリリア(スズキインディアンなどの合弁ブランドを除く)
  • 2022年以降に生産されたモデル: ベネリ
  • 2024年以降に生産されたモデル: カワサキ、ヤマハ、ホンダウイング、ホンダドリームウイング(スンニロホンダやウーヤンホンダなどの合弁ブランドを除く)。

3.他のコネクターとの互換性

あなたのオートバイが使用している場合は ISO 15765-4 CAN プロトコルですが、 異なるOBDコネクター、アダプターを使用すればCG OBDモジュールをご利用いただけます。OBDコネクターの種類についてはカスタマーサービスまでご確認ください(製品 こちら 詳細は).

お客様による非対応(動作確認済み)

2023-2025 ヤマハ テネレ
2025年ヤマハトレーサー9 GT
2023年 Euro-5 ハーレーダビッドソン(特定モデルで確認済み)
2020年モトグッツィV85 TT
2025年カワサキKLR 650
2025年ホンダアフリカツインアドベンチャースポーツ
2025 ホンダ CB650R Eクラッチ
(理由は、連続データストリームが取得できない・ECUプロトコル非対応・ブランド固有の制限など様々です。)

主な特徴

• エンジンのリアルタイムデータを表示

RPMやスロットルポジション、エンジン温度などの重要なメトリックを直接画面で確認でき、オートバイの性能を即座に把握できます。

• オートバイ走行状況の分析

詳細なデータ分析を通じてライディング行動を理解し、パフォーマンスを最適化、パターンを認識し、全体的なライディング経験を向上させましょう。

・自動パワーオフスリープモード

エンジン停止後、OBDモジュールは自動的に電源が切れ、スリープモードに入り、エネルギーを節約し、バッテリーを保護します。

・面倒な作業不要で簡単に取り付け可能

CG OBDモジュールは、素早く簡単に取り付けでき、お使いのオートバイを改造する必要はありません。

・映像ファイルとデータのオーバーレイ&同期(AIO-5 Lite、AIO-6カメラ搭載時)

ライディング動画に同期したOBDデータを重ねて、旅の一瞬一瞬のパフォーマンスをダイナミックに視覚化します。 ※この機能は開発中であり、今後のOTAシステムアップデートで利用可能になる予定です。リリース時期は未定です。


重要な注意事項

• データの利用可能性はモデルによって異なります。

取得できるエンジンデータは、オートバイのブランドやモデルによって異なります。CG OBDモジュールを通じて取得可能なデータはメーカーの公開状況によるもので、製品不良ではありません。

• 互換性要件

お使いのオートバイがCG OBD対応のOBDポートを備えているかご確認ください。必要に応じて、適切なアダプターをご購入ください。 診断用OBDアダプターケーブルバンダイ公式LEDユニット

・BMWオートバイ

BMWはOBDモジュールに対応していません。専用製品のご利用をおすすめします。 CGRCリインモジュール 最適なパフォーマンスのために代わりに使用してください。


インストール手順

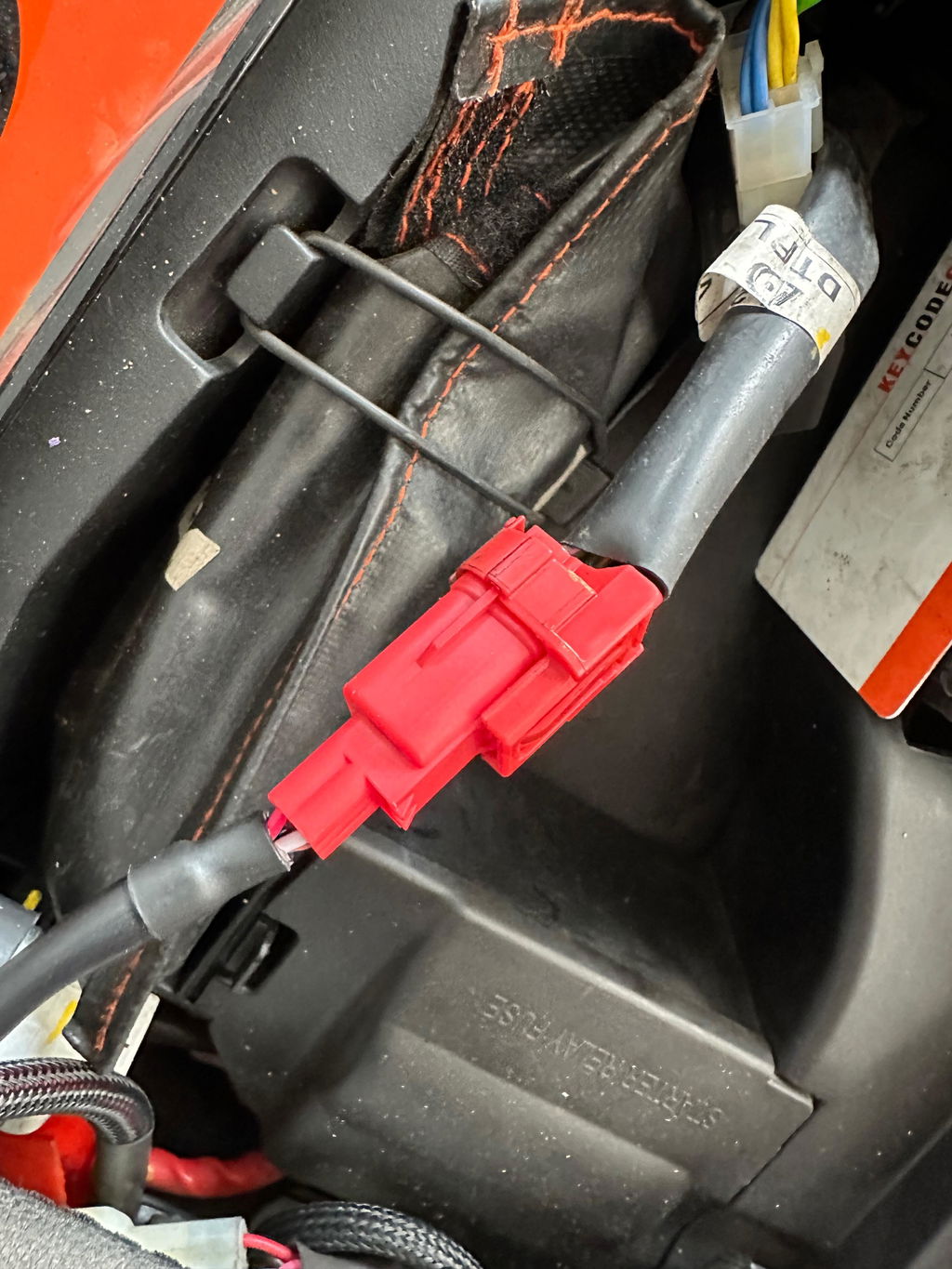

  1. オートバイのOBDポート(通常はバッテリー付近)を探します。
  2. 同梱のケーブルにCG OBDモジュールを接続してください。
  3. モジュールをオートバイのOBDポートに直接差し込みます。
  4. 粘着テープなどでOBDモジュールをしっかりと固定します。
  5. インストール完了。


CG OBDモジュールのペアリング方法

  1. システムペアリングでの投稿に対して報酬を大幅に増加させました。ポイント数は
    • に移動します。 システム設定 > 機能 > OBD あなたのデバイスで。
    • 「ペアリング開始」をタップします。

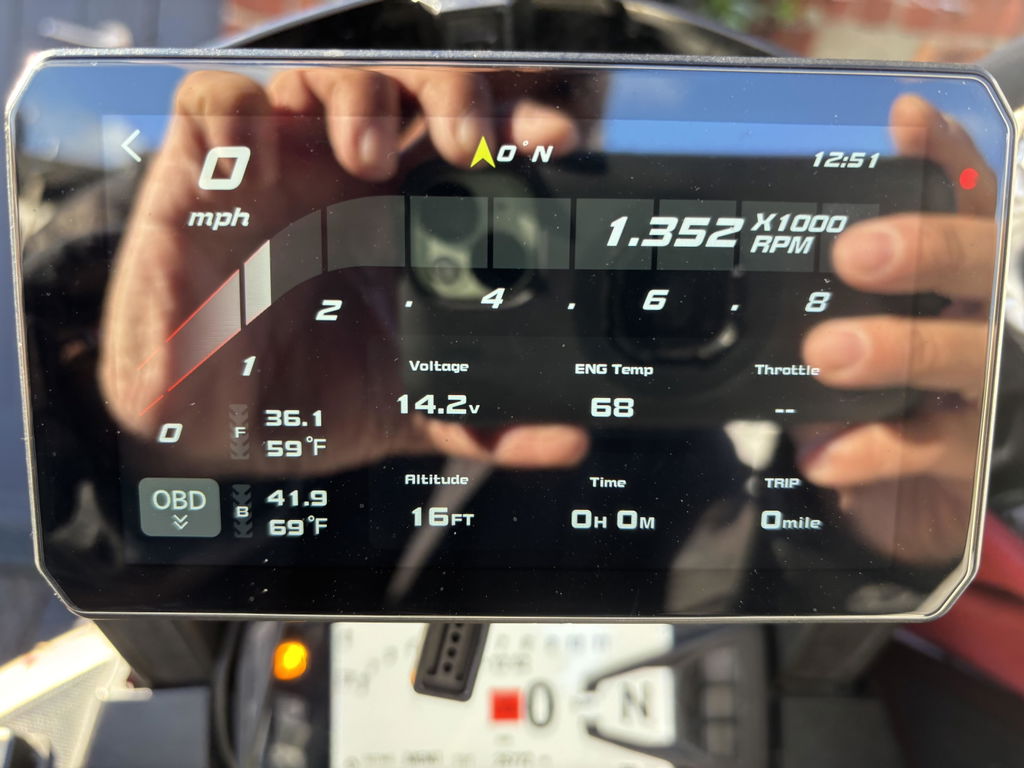

  2. ペアリング成功:ホーム画面に戻り、「メーター」にアクセスします。画面左下の「OBD」をタップしてOBD専用ダッシュボード画面に入ります。



よりスマートなライディングを解放

よくある質問

詳細については、ぜひご覧ください。 ナレッジベースご不明な点がございましたら、お気軽に お問い合わせ 直接お問い合わせください。

CHIGEEでは、お客様に最高品質のサービスをご提供することに努めております。ご安心ください。お客様のチケットにはできる限り迅速に対応いたします。平均回答時間:24時間

Customers praised this wireless OBD module for "incredibly simple installation" and plug-and-play setup. Most found it works flawlessly with various motorcycles, providing detailed engine data. However, some noted compatibility issues with certain bikes, occasional data lag (especially RPM), and limited customization options. Price considered high by some.

Installation (positive)Quality (positive)Pairing (positive)Display (positive)Data (positive)
  • 5 stars: 43 (64%)
  • 4 stars: 13 (19%)
  • 3 stars: 6 (9%)
  • 2 stars: 2 (3%)
  • 1 star: 3 (4%)
C
Colin S. (San Francisco, US)
Brand: Ducati
Model: Multistrada V4 RS
Incredibly simple installation

Incredibly simple installation. Works perfectly.

D
Danny D. (Trois-Rivières, CA)
Brand: Yamaha
Model: FJR1300 2026
Fil adaptateur

Il n'y a pas de fil adaptateur pour la FJR 1300.

D
Daniel C. (Liège, BE)
Brand: Ducati
Model: multistrada V4S
connexion facile et directement reconnu

connexion facile et directement reconnu...

Dommage que les data ne contiennent pas la pression pneu

M
Mark B. (Plainfield, US)
Brand: Indian
Model: Scout Bobber 1250cc

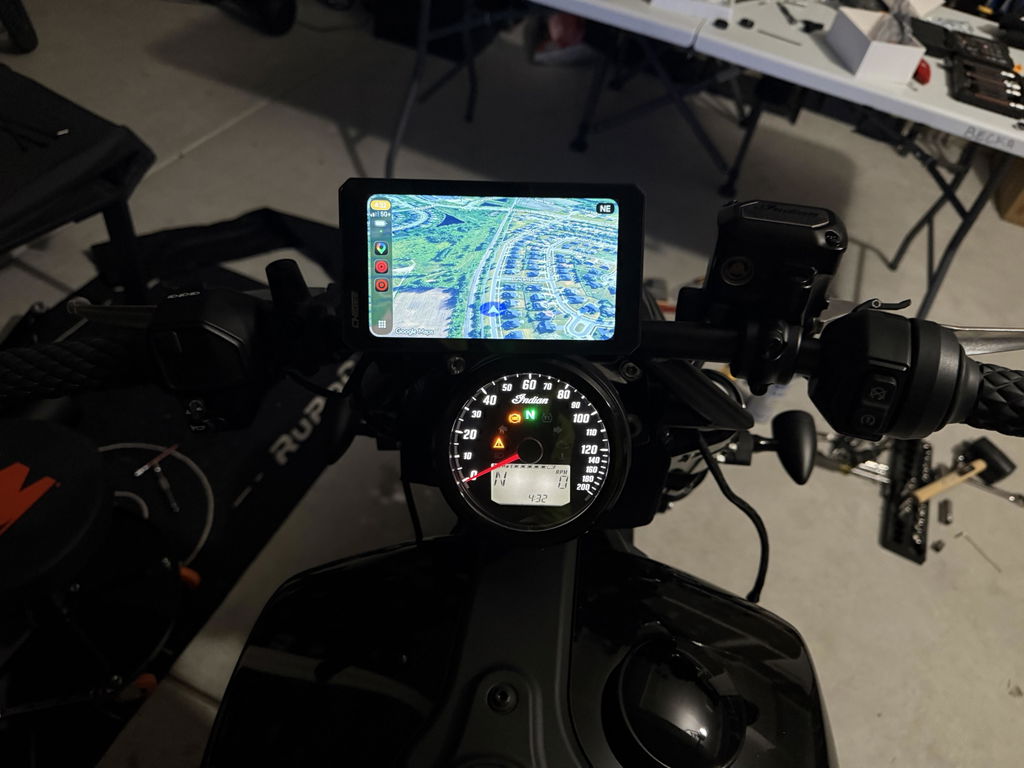

Perfect connection

Got it to read my 2025 Scout Bobber 1250 with the right harnesses, The new Scout has an 8pin OBD so you have to get 8 pin to 16pin adapter and then get the 16 pin connector hook up to the OBD Module. The ONLY downside is the AIO 6 isn’t customizable so it shows what is already preset which for me a lot of it is useless like lean, altitude and sunset time. I bought the AIO 6 for the CarPlay features adding the ODB is a nice touch but very limited in information transmission

G
Geoffrey W. (Enterprise, US)
Brand: Kawasaki
Model: 2024 ZX4RR
OBD for my modified 2024 ZX4RR

I moved a Chigee AIO5Lite from a 2021 Thruxton over to my 2024 ZX4RR. I updated the firmware first thing and installed both cameras and the TPMS. Because the Kawasaki has a 6 pin connector for the odb, it was a good time to try it out. It shipped quickly and worked right out of the box, after pairing. I have a flashed ECU which didn't present any issues.

A
Aiman G. (Khobar, SA)
Brand: Ducati
Model: Monster 937 2025
Perfect

Exactly as promoted. Easy to use and install. Rugged and well built.

P
Praveen S.G.M. (Bengaluru, IN)
Brand: KTM
Model: 390 ADV 2023 SW Edition

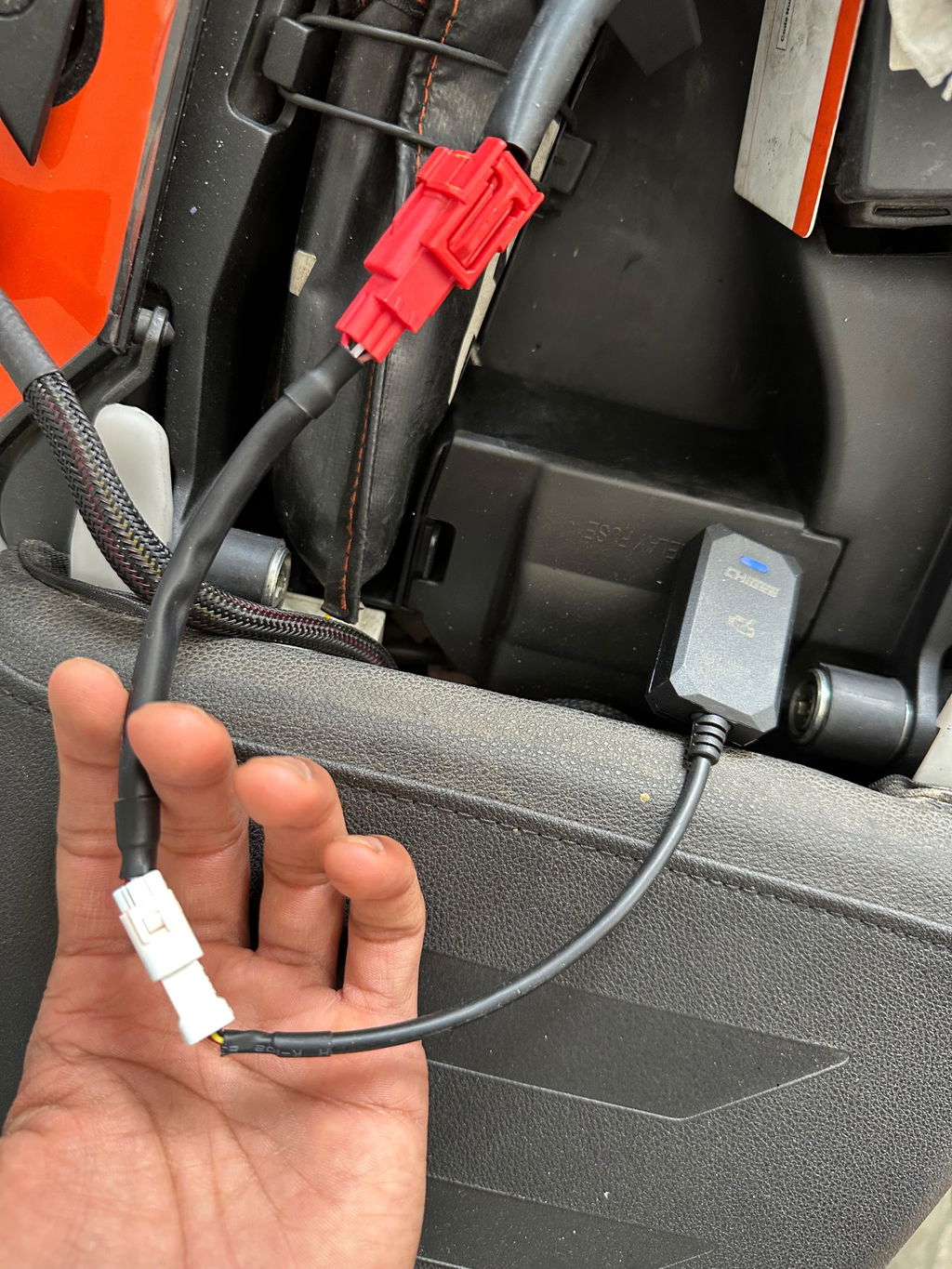

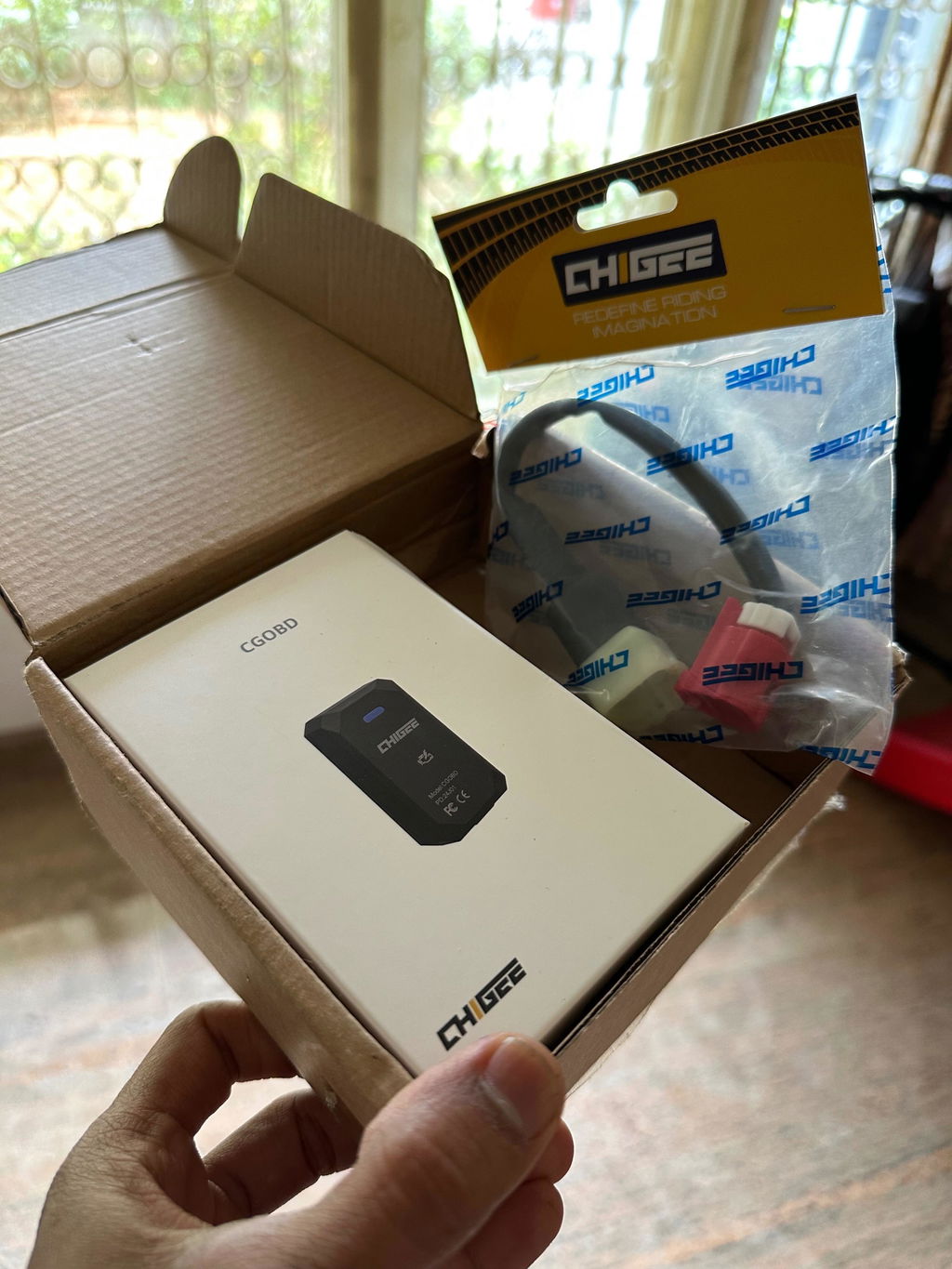

Wireless OBD - 390 ADV SW Edition

After a lot of research and review, stumbled upon this product for Chigee AIO 5 Play.

To begin with, I’m happy with the quality of the product and the integration with the display. I was exited to see all the stats displayed on the OBD view.

Pro : The readings are very detailed and also limited to what’s readable from the ECU.

Con : The device doesn’t read the stats consistently, I had few instances where the OBD reading was not responding, stuck at a particular speed which didn’t change for a while during my ride.

And few other instances where the stats were not very accurate and I notice a delay in reading the stats as well.

Overall, it’s great to start with - but also needs a bit of fine tuning and making it even more efficient with respect to the functionality.

P
Paolo A. (Bacoor, PH)
Brand: Triumph
Model: Trident 660

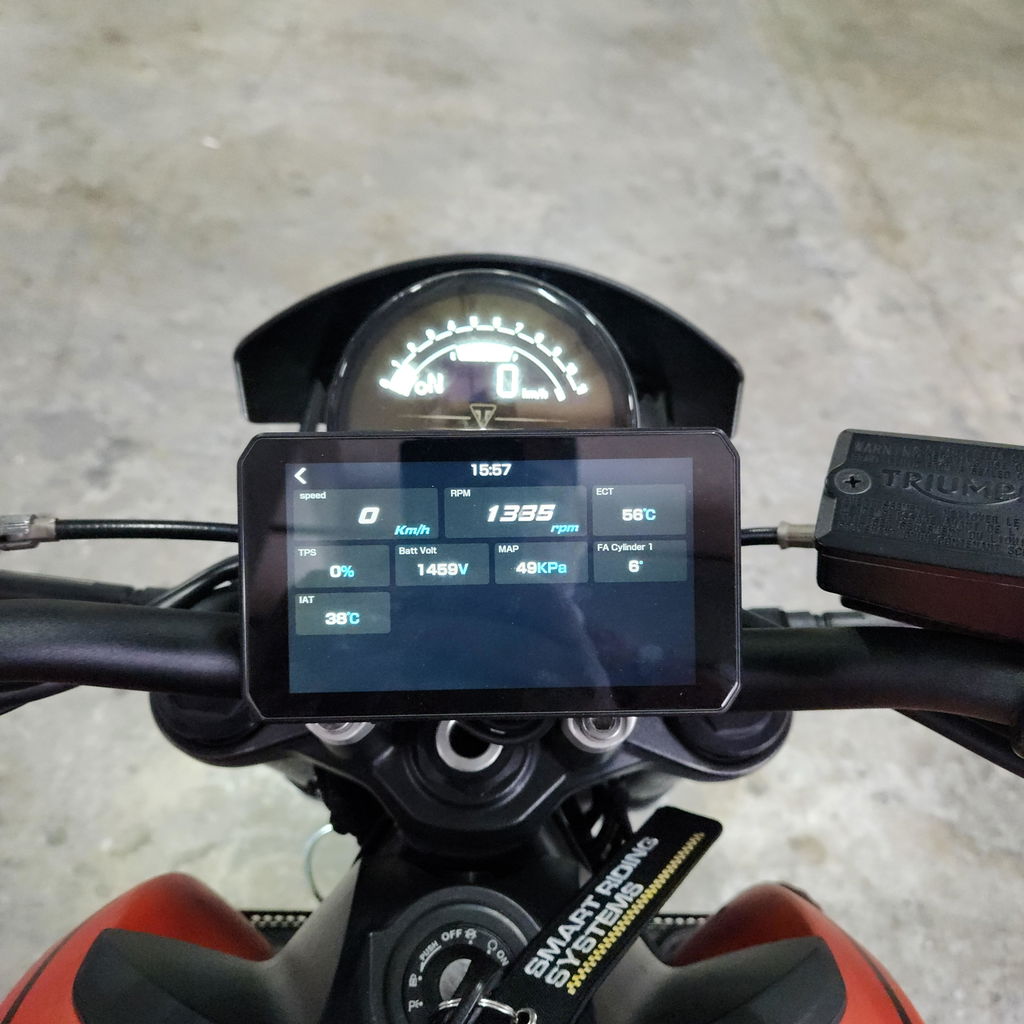

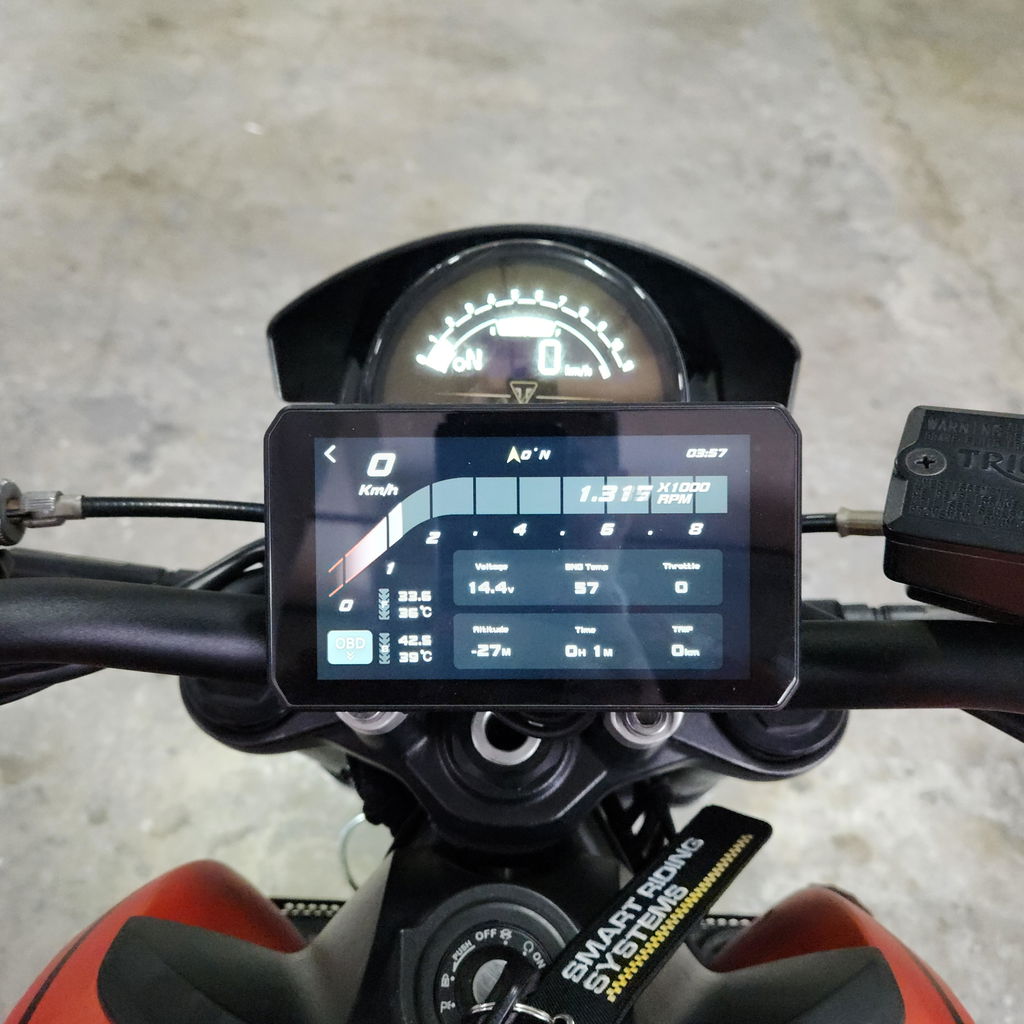

Works with the Triumph Trident

Needs the 16pin adapter but works great on the Trident 660. Easy to install and connect to the main AIO console. Right now it just shows more stats fed thru obd2, hopefully Chigee will enhance further, maybe add features such as displaying current gear position, dispkaying and clearing error codes. Etc...

M
Meng
Brand: Ducati
Model: Ducati Multistrada 1260s
OBD Ducati Multistrada 1260

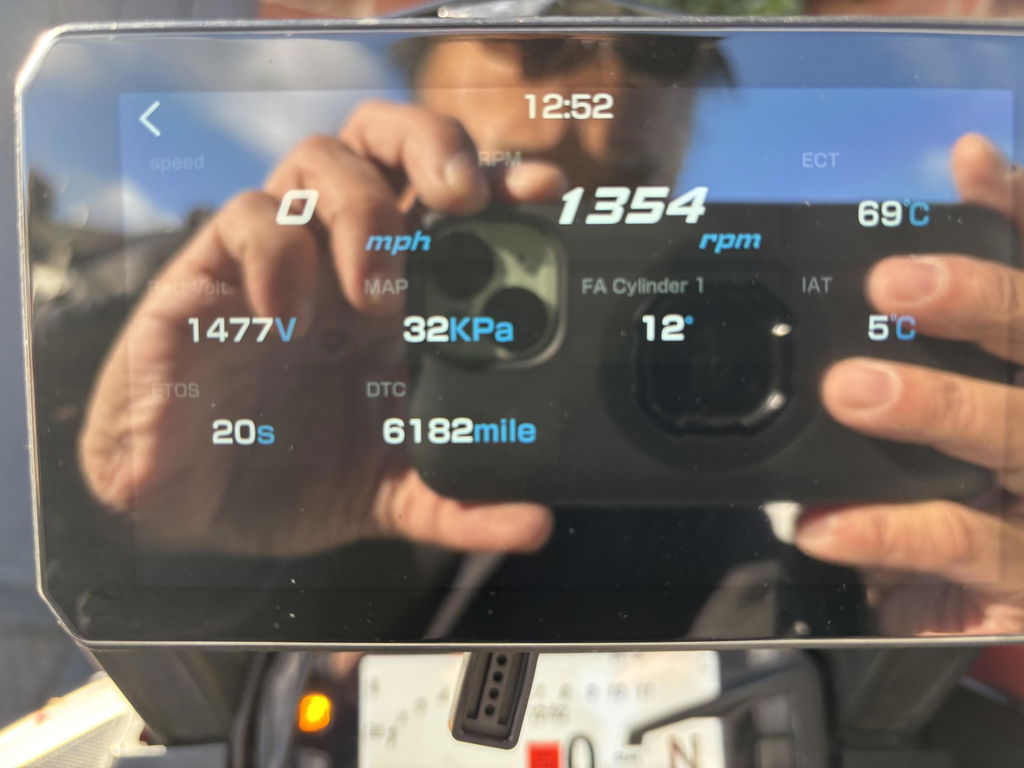

Amazingly quick delivery. This was really easy to install once u update to latest software - settings features obd pair. I am awaiting the Ducati specific cable so in the interim am using two cables to adapt to the Ducati 4pin port. It’s works straight out of box with a software upgrade and shows interesting data such as rev TPMs engine temp altitude trip miles voltage plus data I don’t understand ect map fa cylinder ftos. This is an example of how great CHIGEE are continually innovating providing software updates. Now awaiting second module for my bmw R9T

J
Jorge E.M. (Copacabana, CO)
Brand: Others
Model: VOGE DS900X
Conectar y Funcionar - Plug and Play

Funciona perfecto con la computadora de mi moto, tan facil como instalar y automaticamente la reconoce y sincroniza

A
Anonymous (Forney, US)
Brand: Suzuki
Model: GSXR 750Z
Not compatible with Suzuki

Not compatible with Suzuki.

Thank you for your feedback.

At the moment, our CG OBD Wireless Module requires the motorcycle to meet both of the following conditions:

- Protocol: The motorcycle must support ISO 15765-4 (CAN)
- Connector:It must use a compatible Euro-5 6-pin diagnostic connector

If the connector on your Suzuki does not match, and there is no verified compatible adapter cable available, unfortunately the OBD module cannot be installed or used to read the vehicle data.

If you need any after-sales assistance, including a return request, please feel free to contact our customer support team directly and we will help you with the next steps.

Best regards,

M
Mohamad R.M. (Singapore, SG)
Brand: Honda
Model: nc750x dct 2021
easy installation

Just plug and play.

C
Christophe b. (Savigny-le-Temple, FR)
Brand: Triumph
Model: Tiger 1200 GT PRO

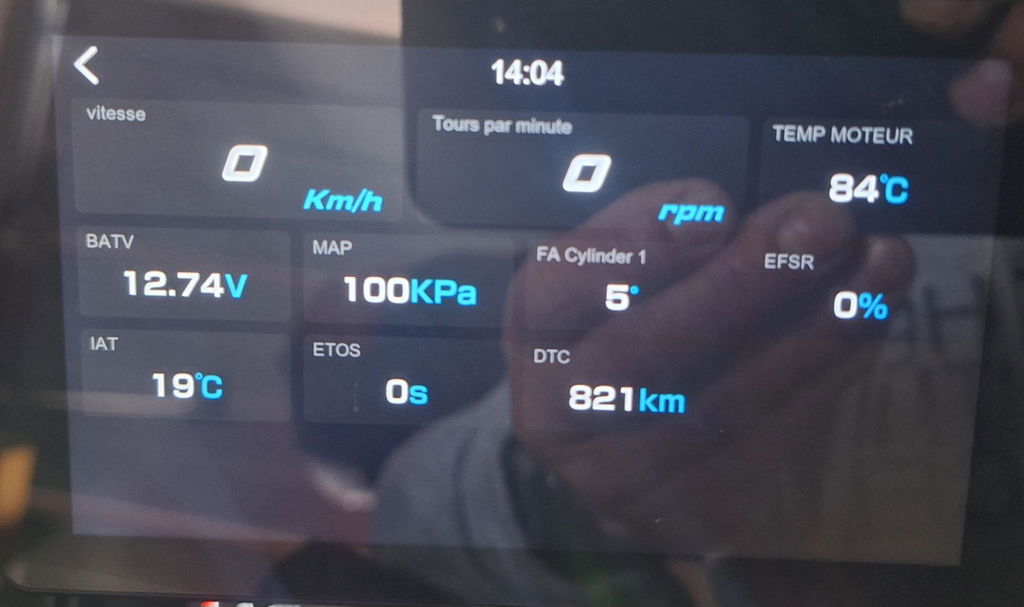

Toutes les infos

Toutes les infos et bien plus, accessibles sans avoir besoin de chercher dans des menus

j
juan p. (Lima, PE)
Brand: KTM
Model: 890r 2024
Ok

Todo funciona muy bien

A
Anonymous
Brand: Kawasaki
Model: Versys 1100 S GT
Höst projekt

Ej inkopplat ännu. Får bli projekt till hösten. Nu skall det köras

E
Enrico H. (Schirgiswalde-Kirschau, DE)
Brand: Ducati
Model: Ducati DesertX
Funktioniert tadellos und unkompliziert

Funktioniert tadellos und unkompliziert. Die Installation war einfach, viele Daten lassen sich bei meiner Ducati DesertX auslesen.

B
Ben K. (Redmond, US)
Brand: Honda
Model: CB750 Hornet E-Clutch
Smooth!

Super easy plug and play installation, paired immediately. Working great!

A
AURELIO D.
Brand: Yamaha
Model: Yamaha
Excellent technology! It's like having Iron Man's helmet readouts on your dashboard

Excellent technology! It's like having Iron Man's helmet readouts on your dashboard. Highly recommend!

A
Anonymous (Athens, GR)
Brand: Honda
Model: Forza 750 2026
Love it

Nice integration with my Forza 750 2026 ! Thanks a lot!!!

R
Remo B. (Oberentfelden, CH)
Brand: Ducati
Model: MULTISTRADA V4 RS 2026
Gutes Produkt

Ducati Multistrada, passt und Funktioniert

C
Cornel H. (Guelph, CA)
Brand: KTM
Model: 1290 Super Adventure (2015 year)
Does not work on 2015 KTM 1290SA

Ordered on Pre-order. At that time there was no compatibility list as show now. Without this most features I was interested in will not show. Hope they will come out with a newer version backward compatible for the KTM.

Thank you for your feedback.

We're sorry to hear the product didn't meet your expectations.

We are sorry that the OBD module is not compatible with your 2015 KTM 1290 Super Adventure, especially as the current compatibility information was not available when you placed your pre-order.

For KTM motorcycles, we generally recommend the OBD module for models from 2019 onward. The motorcycle must meet both of the following requirements:

Protocol: ISO 15765-4 (CAN)
Connector: Euro 5 six-pin connector

We understand your disappointment and appreciate your suggestion regarding a future version with backward compatibility. At present, however, we do not have a confirmed update or release plan for older KTM models.

Thank you for your understanding.

Best regards,

J
John

Easy to fit, works straight out of the box
