SKU: MFP0213

Support spécifique pour Yamaha TMAX560 pour Chigee Display

Prix de venteUS$27.00 4.0

Expédition rapide et mondiale
Garantie de 12 mois

Spécialement conçu pour le Yamaha TMAX, ce support offre un ajustement parfait et une stabilité inébranlable pour votre écran CHIGEE ou base CG à Démontage rapide. Fabriqué en acier inoxydable 304 de haute qualité, il offre une résistance exceptionnelle et une excellente résistance à la corrosion, garantissant des performances fiables et une durabilité à long terme dans toutes les conditions de conduite.

Applicable aux modèles suivants : AIO-6, AIO-5, XR-2

Caractéristiques :

Dimensions : 74 x 20 x 50 mm

Guide d'utilisation :

  • Installez le support spécifique à TMAX sur l'arrière de l'écran Chigee ou de la base à dégagement rapide CG. Veuillez prêter attention à distinguer l'orientation correcte du support.
  • Retirez les deux vis inférieures parmi les quatre vis au centre du guidon.
  • Placez les rondelles de vis et alignez le support avec les trous de montage.
  • Fixez fermement à l'aide des vis fournies (couple recommandé : 15 N·m).

Manuel pour le support spécifique à la Yamaha TMAX560

  • 5 stars: 1 (33%)
  • 4 stars: 1 (33%)
  • 3 stars: 1 (33%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
P
Paul S. (Sydney, AU)
Brand: Yamaha
Model: TMAX 560 2024
Had to buy hex head bolt to use it

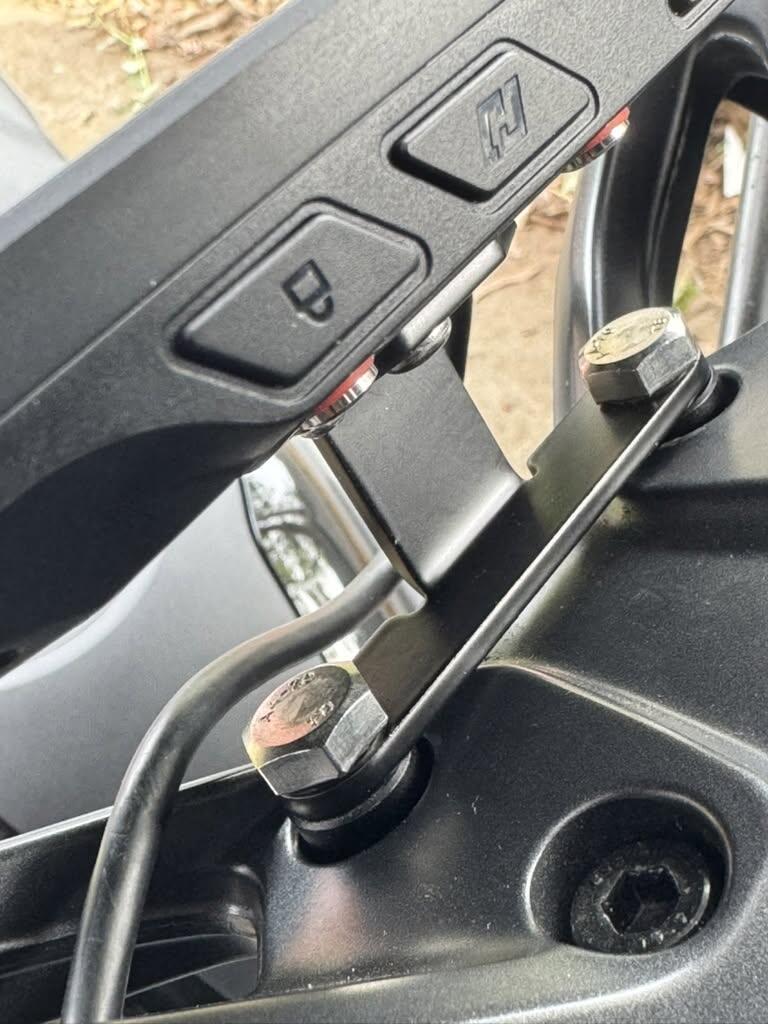

For installing head unit without a quick release mount, there is insufficient space for an Allen Key to secure the bolts. I had to replace the bolts with marine grade stainless hex head bolts, which I could then fix using a ratchet ring spanner. If you are using a quick release mount, you may be able to use the Allen Key head bolts. The bracket has no adjustment option, however I was happy with the angle as designed.

J
Juan A. (Albacete, ES)
Brand: Yamaha
Model: TMAX 560
es robusto y buena

es robusto y buena calidad

M
Michael

The supplied bolts are a different colour to the OEM ones and are quite noticeable. There’s also no adjustability at all. It’s a fixed mount and unfortunately sits too low to be useful.
